Yonker 7inch display 3 channel ECG Machine with touch screen

Short Description:

Input circuit Floating, Protection against defibrillator effect

Voltage tolerance:±500m V

Time constant:>3.2s

Frequent response: 0.05Hz~150Hz

Input Impedance: >50MΩ

Input Circuit Current: ≤ 0.1µ A

Patient Auxiliary Current:: < 10µ A (220V-240V/50Hz)

CMRR: ≥ 100dB, with AC Filter

A/D ResolutionA/D: 12bits/1000HZ

Acquisition Mode:Simultaneously acquisition of 12 lead, full

screen display of 12 channel ECG waveforms.

Sensitivity:5,10,20mm/mV


Product Detail

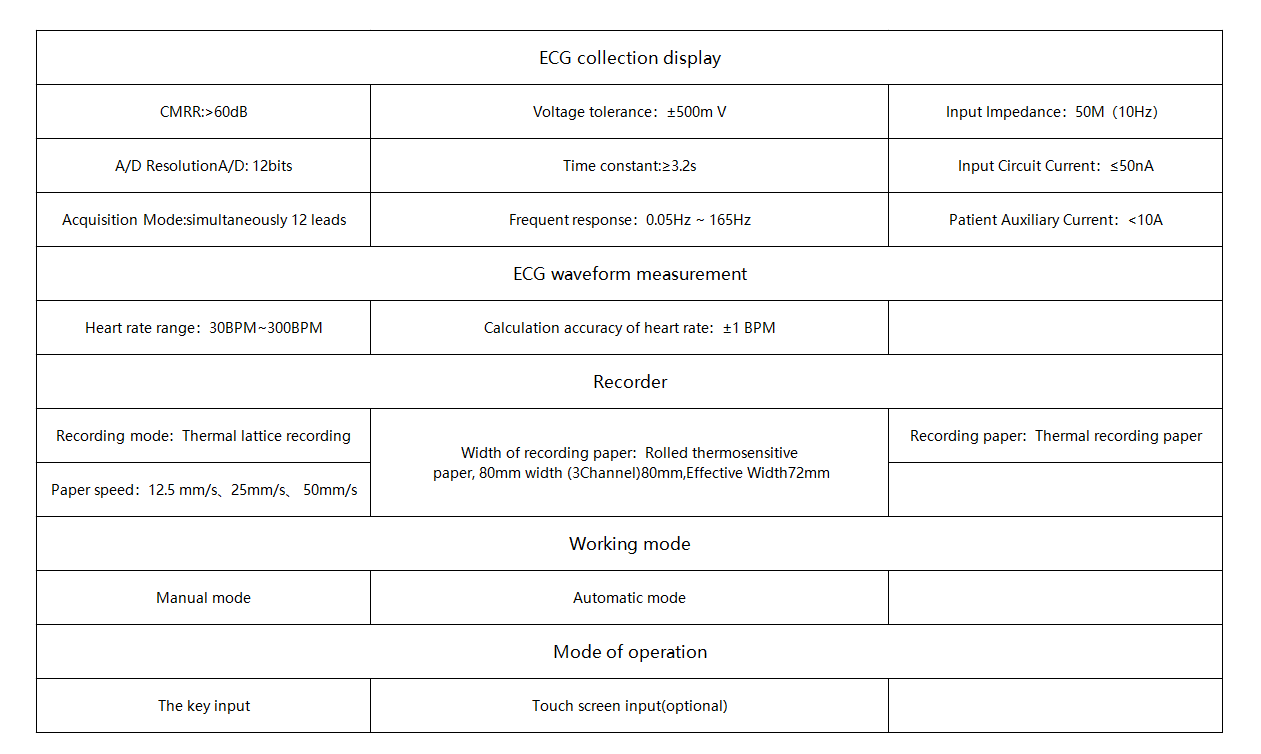

Tech Specs

Product Video

Product Tags

Features

ECG3

2

1.Modern in design, light in weight, compact in size.

2.Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms. 7'' color screen, both push-button and touch operation(optional).

3.Sensitive filters of ADS, HUM, and EMG.

4.Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor’s burden and improve working efficiency.

5.Automatic adjustment of baseline for optimal recording.

6.Thermal printer with 80mm print paper, synchronization print.

7.Lead off detection function.

8.Built-in rechargeable li-ion battery (12V/2000mAh), AC/DC power conversion. Adapt to 100-240V, 50/60Hz AC power supply.

9.Historical data and patient’s information can be reviewed and printed. The machine can store over 500 ECG reports in its built-in flash.

10.USB communication interfaces (optional).

3
1628672676(1)

Functions are as follows: recording and display-ing ECG waveforms in auto/manual mode; auto-measuring and auto-diagnosing the ECG wave parameters; save patient data into machine, USB driver automatically(optional), prompting the state of lead off.

Color TFT display
The high resolution hot array output system is adopted
The electrode with bad contact can be accurately determined and the corresponding position can be
The design conforms to the IECI type CF safety standard, and the ECG amplifier is fully floated
A flexible output print format
Standard external input output interface and RS-232 communication interfac
3 or 6 or 12 lead synchronous acquisition, synchronous amplification, three frack record
The daily consumables are greatly saved

1
333

Accessories

1 x device

1 x Li-Battery

1 x Power line

1 x Earth wire

1 x User’s Manual

1 x Blood oxygen probe (for SpO2, PR)

1 x Blood pressure cuff (for NIBP) 1 x ECG cable (for ECG, RESP)

1 x Temperature probe (for Temperature)
