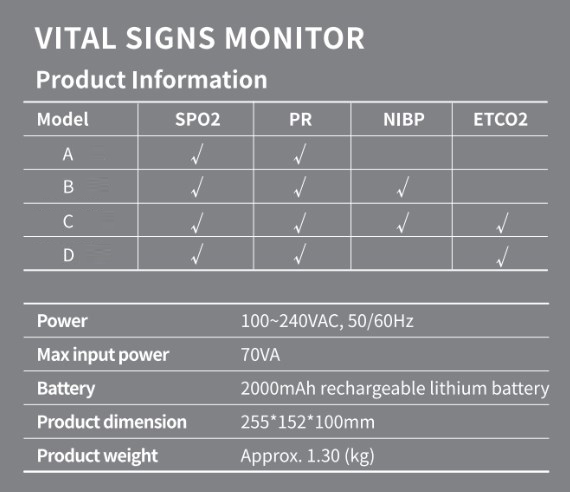

1) SPO2 + PR + NIBP + ETCO2;
2) 4.3 inch color LCD screen support multi-language system;
3) 3 level audio/visual alarm function;
4) Support weak pulse detection function; NIBP measurement; supports manual, automatic and continuous modes, which can meet the requirements of multi-scene detection;
5) Automatic data storage function: supports nearly 96 hours of historical monitoring data query;
6) Built-in high capacity lithium battery ( 4 hours ) for emergency power outage or patient transfer.
|
TECHNICAL SPECIFICATIONS
|
|||
|
ECG
|
NIBP
|
||
|
Input
|
3/5 wire ECG cable
|
Test method
|
Oscillometer
|
|
Lead section
|
I II III aVR, aVL, aVF, V
|
Philosophy
|
Adult, Pediatric and Neonate
|
|
Gain selection
|
*0.25, *0.5, *1, *2，Auto
|
Measurement type
|
Systolic Diastolic Mean
|
|
Sweep speed
|
6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s
|
Measurement parameter
|
Automatic, Continuous measurement
|
|
Heart rate range
|
15-30bpm
|
Measurement method Manual |
mmHg or ±2%
|
|
Calibration
|
±1mv
|
||
|
Accuracy
|
±1bpm or ±1% (select the bigger data)
|
||
|
SPO2
|
2-Temperature (Rectal & Surface)
|
||
|
Display Type
|
Waveform, Data
|
Number of channels
|
2 channels
|
|
Measurement range
|
0-100%
|
Measurement range
|
0-50℃
|
|
Accuracy
|
±2% (between 70%-100%)
|
Accuracy
|
±0.1℃
|
|
Pulse rate range
|
20-300bpm
|
Display
|
T1, T2, ☒T
|
|
Accuracy
|
±1bpm or ±2% (select the bigger data)
|
Unit
|
ºC/ºF selection
|
|
Resolution
|
1bpm
|
Refresh cycle
|
1s-2s
|
|
Respiration (Impedance & Nasal Tube)
|
|||
|
Measurement type
|
0-150rpm
|
||
|
Accuracy
|
±1bm or ±5%, select the bigger data
|
||
|
Resolution
|
1rpm
|
||
|
Standard accessories
|
|||
|
NIBP cuff & tube
|
ECG cable & electrodes
|
SpO2 sensor
|
TEMP probe
|
|
Lithium-ion battery
|
Power cable
|
Operator’s manual
|
|
|
Optional accessories
|
|||
|
IBP
|
CO2
|
Nellcor SpO2
|
Printer
|
