Modular Patient Monitor

Short Description:

Model: E12

Display: 12 inch TFT sreen

Parameter:Spo2, Pr, Nibp, ECG, Resp, Temp

Optional: Etco2, Nellcor Spo2, 2-IBP, Recorder, Touch Screen, Trolley, Wall Mount

Power requirements: AC: 100 ~ 240V, 50Hz/60Hz
DC: Built-in rechargeable 11.1V 24wh Li-ion battery

Orginal: Jiangsu, China

Cetification: CE, ISO13485, FSC, ISO9001


Product Detail

PRODUCT SPECIFICATIONS

SERVICE & SUPPORT

FEEDBACK

Product Tags

Features





1) 8 parameters (ECG, RESP, SPO2, NIBP, PR, TEMP, IBP, ETCO2)+Fully independent module ( Independent ECG + Nellcor);

2)  Modular patient monitor, flexible to meet the different monitoring requirements;

3) Flexible operate ETCO2 and dual IBP functions;

4) 12.1 inch color LCD touch screen supports multi-lead 8-channel waveform display on the screen and support multi-language system,Full touch screen selectable, more convenient for operation;

5) Patient info input management function;

E12-1



6) 400 groups of NIBP list, 6000 seconds ECG waveform recall, 60 alarm evens records recall, 7-day trend chart in storage;

7)Built-in high capacity lithium battery (4 hours) for emergency power outage or patient transfer;

8)Real time S-T segment analysis, pace-maker detection;

9)Support diagnosis, monitoring, surgery three monitoring modes, support wire or wireless central monitoring system;

10)Built-in high capacity lithium battery (4 hours) for emergency power outage or patient transfer.

E15-31

Smart Solution





1) Wireless integration with the central monitoring

2) station Dynamic trends provide up to 240 hours of useful information for viewing

3) 8 tracks per monitor, 16 monitors on one screen

4) View up to 32 beds in real time on one platform

5) View and manage patient data anytime, anywhere in and before the hospital

E12中央监护系统_画板 1

Accessories



1) Spo2 sensor & extend cable 1pcs

2) ECG cable  1pcs

3) Cuff &Tube 1pcs

4) Temp probe

5) Power Cbale Line 1pcs

6) Ground Line  1pcs

7) User Manual  1pcs



66D6297F-4482-4a70-9BB7-E94EC785AE11

  • Previous:
  • Next:

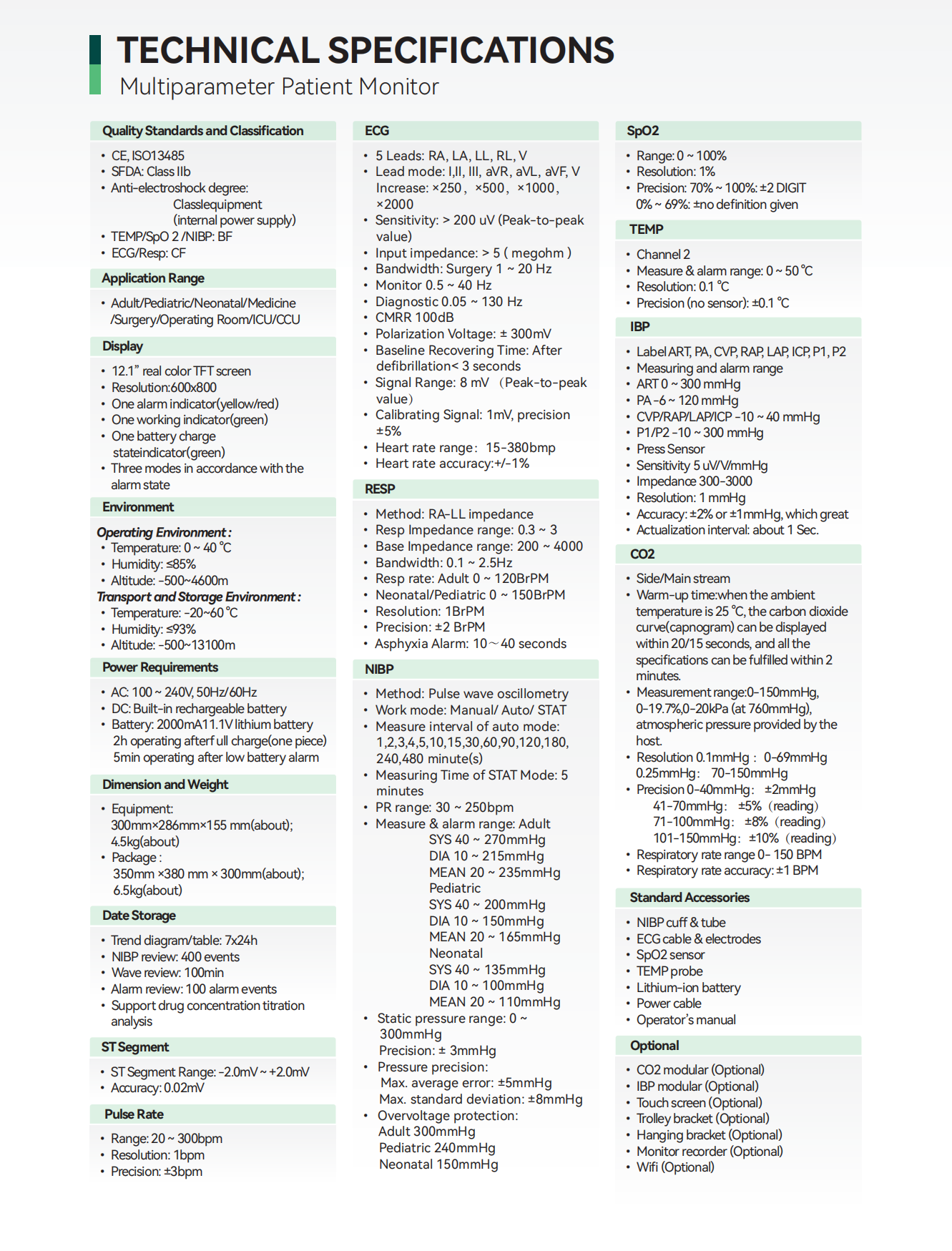

  • TECHNICAL SPECIFICATIONS
    ECG
    NIBP
    Input
    3/5 wire ECG cable
    Test method
    Oscillometer
    Lead section
    I II III aVR, aVL, aVF, V
    Philosophy
    Adult, Pediatric and Neonate
    Gain selection
    *0.25, *0.5, *1, *2,Auto
    Measurement type
    Systolic Diastolic Mean
    Sweep speed
    6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s
    Measurement parameter
    Automatic, Continuous measurement
    Heart rate range
    15-30bpm
    Measurement method Manual

    mmHg or ±2%

    Calibration
    ±1mv
    Accuracy
    ±1bpm or ±1% (select the bigger data)
    SPO2
    2-Temperature (Rectal & Surface)
    Display Type
    Waveform, Data
    Number of channels
    2 channels
    Measurement range
    0-100%
    Measurement range
    0-50℃
    Accuracy
    ±2% (between 70%-100%)
    Accuracy
    ±0.1℃
    Pulse rate range
    20-300bpm
    Display
    T1, T2, ☒T
    Accuracy
    ±1bpm or ±2% (select the bigger data)
    Unit
    ºC/ºF selection
    Resolution
    1bpm
    Refresh cycle
    1s-2s
    Respiration (Impedance & Nasal Tube)
    Measurement type
    0-150rpm
    Accuracy
    ±1bm or ±5%, select the bigger data
    Resolution
    1rpm
    Standard accessories
    NIBP cuff & tube
    ECG cable & electrodes
    SpO2 sensor
    TEMP probe
    Lithium-ion battery
    Power cable
    Operator’s manual
    Optional accessories
    IBP
    CO2
    Nellcor SpO2
    Printer

    1.Quality Assureance
    Strict quality control standards of ISO9001 to ensure the highest quality;
    Respond to quality issues within 24 hours, and enjoy 7 days to return.

    2.Warranty
    All products have a 1 year warranty from our store.

    3.Deliver time
    Most Goods will be shipped within 72 hours after payment.

    4.Three packagings to choose
    You have special 3 gift box packaging options for each product.

    5.Design Ability
    Artwork / Instruction manual / product design according to customer’s requirement.

    6.Customized LOGO and Packaging
    1. Silk-screen printing logo( Min. order.200 pcs );
    2. Laser engraved logo(Min. order.500 pcs);
    3. Color box Package / polybag Package ( Min. order.200 pcs ).
