Seeing the Heart in Motion: How Modern Cart-Based Ultrasound Systems Are Transforming Cardiac Imaging

Cardiovascular disease remains one of the leading causes of death worldwide. For decades, cardiologists have relied on a range of diagnostic tools to understand how the heart works, detect abnormalities, and plan treatments. Among these, cardiac ultrasound—also known as echocardiography—has earned a reputation as one of the safest, most versatile, and most informative imaging techniques.

In recent years, advancements in ultrasound technology have given clinicians new ways to see the heart in extraordinary detail. One innovation reshaping the field is the cart-based premium diagnostic ultrasound system, a mobile yet highly capable platform designed for demanding clinical environments. The Revo T2, developed by Yonker, is a prime example of how modern engineering is bringing cardiac imaging into a new era.

What Is Cardiac Ultrasound and Why Is It Important?

Cardiac ultrasound uses high-frequency sound waves to produce real-time images of the heart. A transducer, or probe, emits these waves, which bounce off the moving structures of the heart and return to the probe. The system processes the echoes and reconstructs them into visual images that display chambers, valves, and blood flow.

Echocardiography allows clinicians to evaluate:

• Heart size and shape

• Pumping function (ejection fraction)

• Valve structure and motion

• Blood flow patterns and speed

• Presence of clots, fluid buildup, or abnormal masses

Because it does not use ionizing radiation, ultrasound can be performed repeatedly without health risks, making it suitable for continuous monitoring as well as routine check-ups.

The Limitations of Older Systems

While ultrasound has been a cornerstone of cardiac care, traditional machines have had limitations:

• Lower frame rates made it difficult to capture rapid heart motion.

• Poor penetration in obese patients or those with lung disease reduced image clarity.

• Limited mobility meant patients had to be transported to the ultrasound room—an issue for unstable cases.

• Fewer imaging modes restricted diagnostic flexibility.

To address these challenges, modern systems are now integrating advanced computing, high-sensitivity probes, and flexible workflows.

How the Revo T2 Elevates Cardiac Imaging

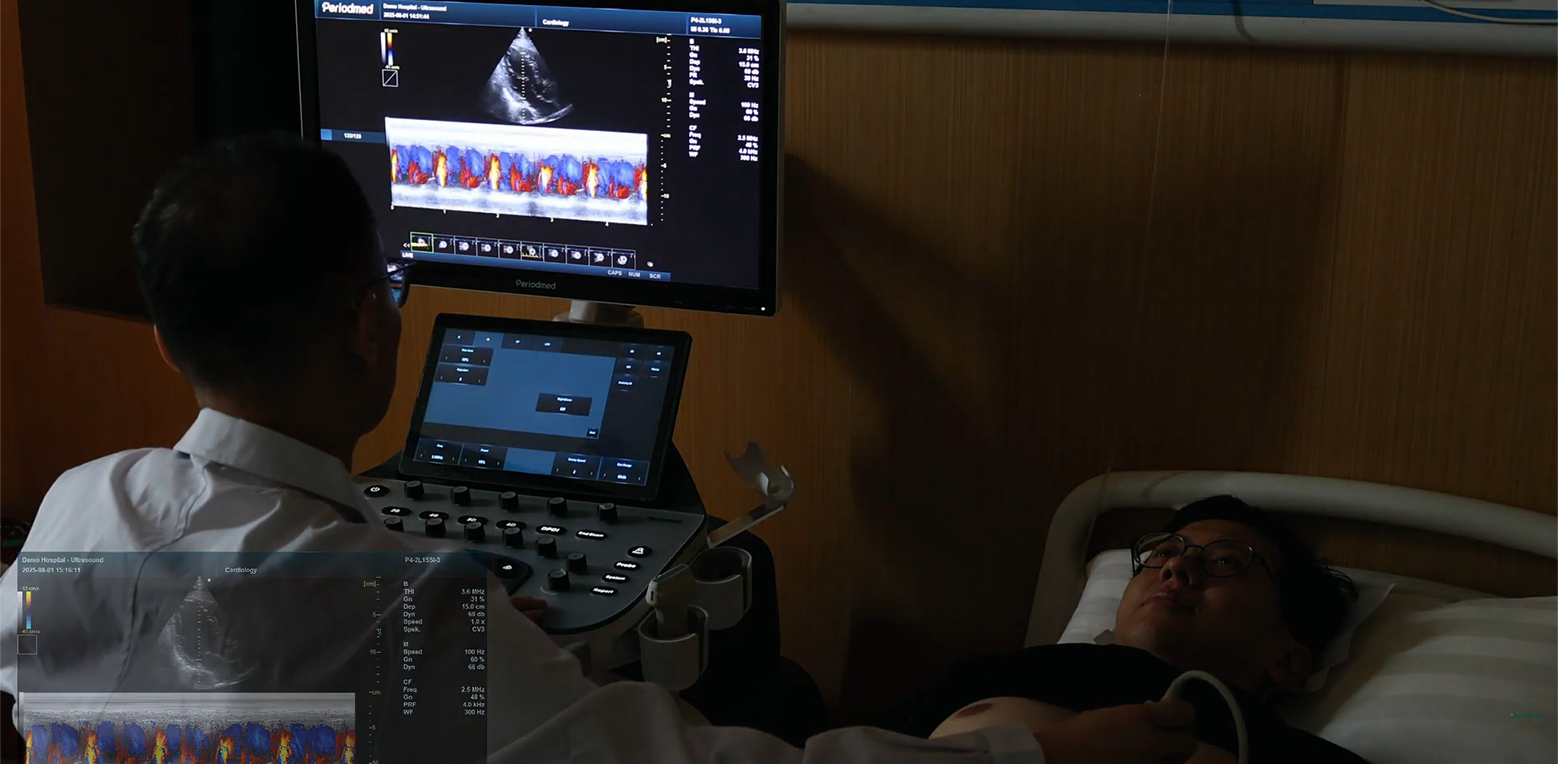

The Revo T2 is a cart-based premium diagnostic ultrasound system that combines mobility with the computational power typically found in stationary imaging units. Its design reflects a deep understanding of both technology and clinical needs.

1. Advanced Beam-Forming for Precision

Traditional systems rely on linear signal processing, but the Revo T2 employs GPU + CPU parallel computing to deliver “dot-focus” beam transmission. This means the ultrasound beam can be shaped and focused with high precision, resulting in sharper, more detailed images of heart walls and valves.

2. High Frame Rates for Rapid Motion

The human heart can beat more than 100,000 times a day, and in many cases, each contraction happens in less than a second. The Revo T2 supports multi-beam transmission—up to 16 simultaneous beams—capturing fast cardiac motion without blurring. This is critical for detecting arrhythmias, valve disorders, and subtle motion abnormalities.

3. Comprehensive Imaging Modes

Cardiologists often need more than a single view of the heart. The Revo T2 covers:

• 2D and M-mode for structural imaging

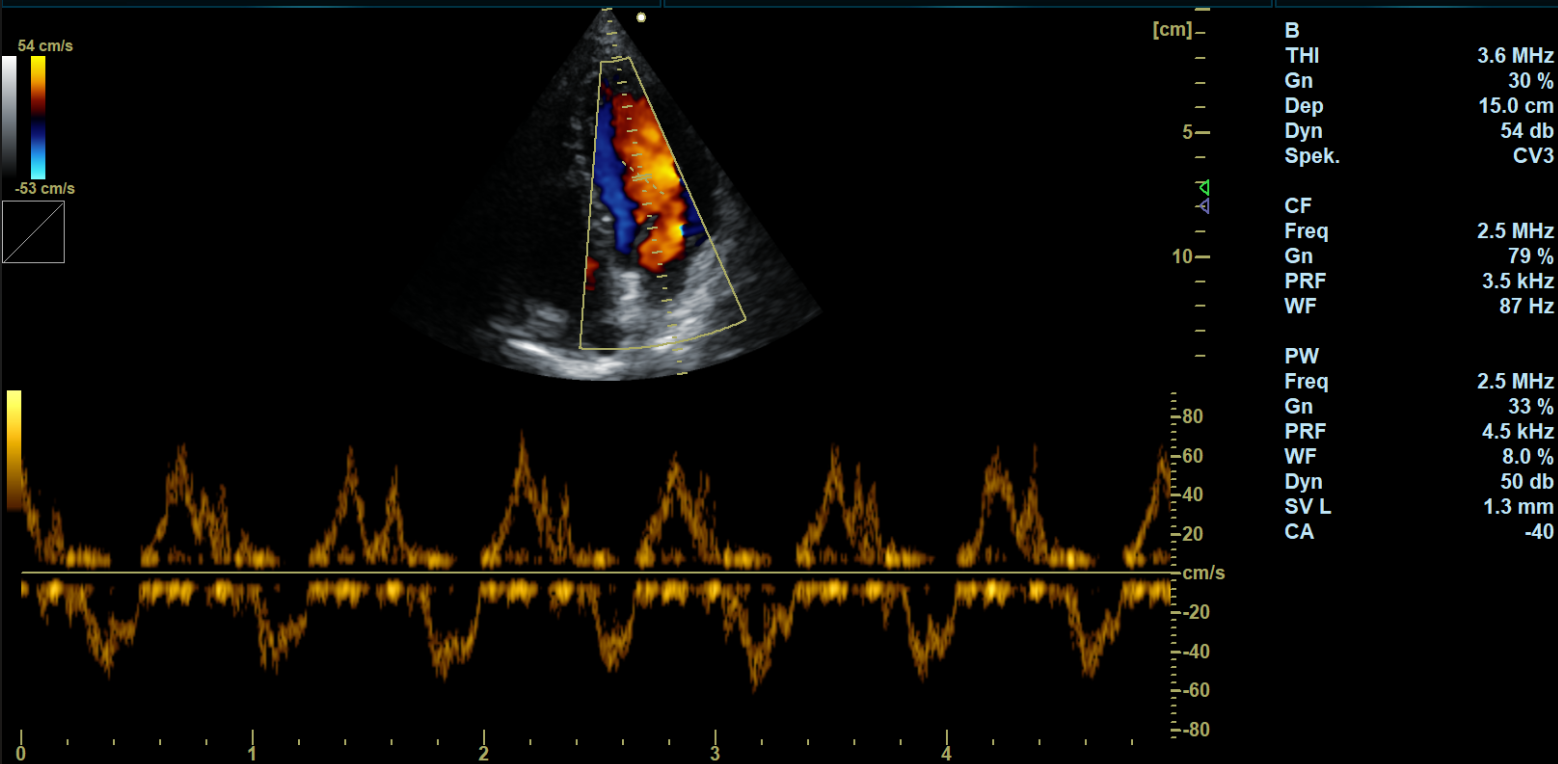

• Color and power Doppler for blood flow mapping

• Tissue Doppler Imaging (TDI) to measure myocardial movement speed

• Contrast imaging to highlight perfusion patterns

• 3D and 4D imaging for volumetric assessment
  This variety allows one system to serve in routine screening, emergency diagnostics, and interventional guidance.

4. Enhanced Microvascular Visualization

Small vessel disease can be an early sign of coronary problems. The Revo T2’s microangiography mode can detect microcirculation changes in the myocardium, helping clinicians intervene before larger arteries are affected.

5. Elastography for Tissue Characterization

The stiffness of heart tissue can reveal conditions like fibrosis. Elastography, built into the Revo T2, offers quantitative, reproducible stiffness measurements—adding another layer of diagnostic insight.

Why Cart-Based Systems Matter in Cardiac Care

While handheld and portable units have become popular, there is still a strong need for cart-based systems in cardiology:

• Larger screens offer more detailed views for precise diagnosis.

• Higher computing capacity enables advanced imaging modes without lag.

• Multiple probe support allows switching between cardiac, vascular, and abdominal scans within seconds.

• Stable power supply ensures consistent performance during long examinations.

The Revo T2 integrates these advantages with a sleek, maneuverable cart, enabling clinicians to move from the ER to the ICU without sacrificing performance.
